SCHAFFNER FN2080-6-06 Product Details

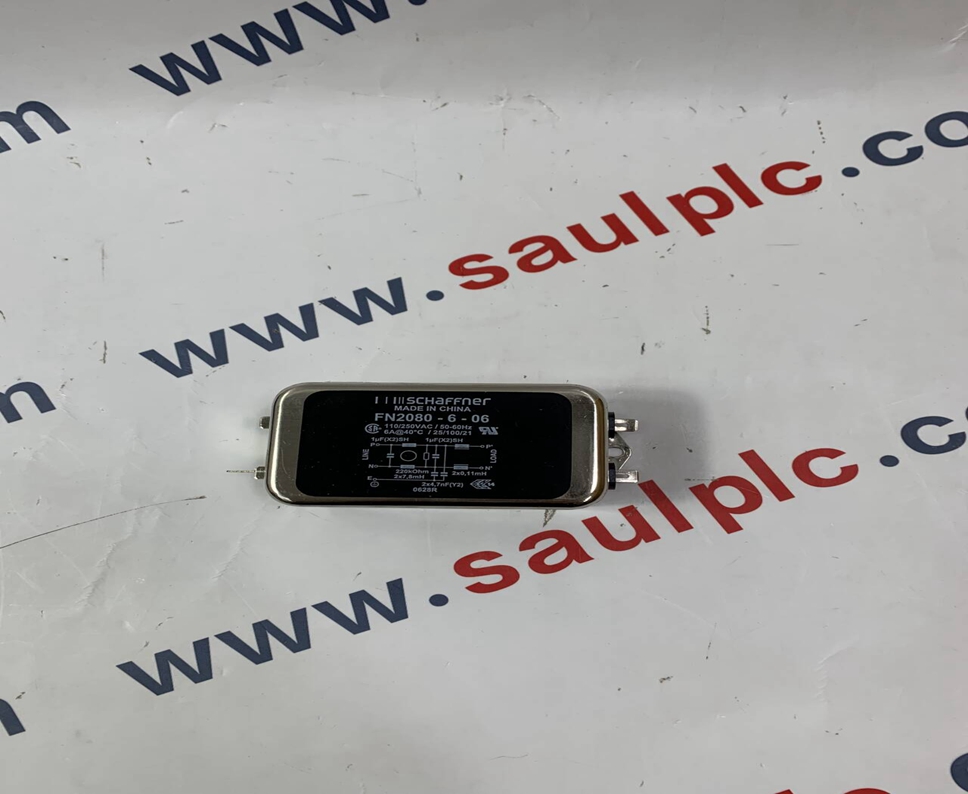

The SCHAFFNER FN2080-6-06 is a single-phase, two-stage EMC/EMI filter designed for chassis mounting. It features a compact design and provides high conducted attenuation performance. Connection is via 6.3 x 0.8 mm fast-on terminals.

Product Parameters

• Manufacturer: SCHAFFNER

• Series: FN2080

• Rated Voltage: 250 VAC/DC

• Rated Current: 6 A @ 40°C

• Operating Frequency: DC to 400 Hz

• Number of Phases: 1

• Number of Stages: Two-stage

• Termination Style: Fast-on terminals (6.3 x 0.8 mm)

• Capacitance (Cx): 1 µF

• Capacitance (Cy): 4.7 nF

• Inductance (L1): 7.8 mH

• Inductance (L2): 110 µH

• Resistance: 220 kΩ

• Leakage Current (IEC60939): 0.66 mA

• Power Loss: 5.7 W

• CM Attenuation @ 150kHz: 37 dB (typical)

• DM Attenuation @ 150kHz: 38 dB (typical)

• Operating Temperature: -25°C to +100°C (25/100/21)

• Dielectric Strength (P -> PE): 2000 VAC for 2 sec

• Dielectric Strength (P -> N): 1100 VDC for 2 sec

• Flammability: Terminal plastic: UL 94 V-0

• Mounting: Chassis mount, screw

• Dimensions (L x W x H): 94 mm x 56 mm x 45.4 mm

• Weight: 390 g

• Approvals: UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

Product Advantages

• High conducted attenuation performance: The two-stage design ensures effective filtering of electromagnetic interference.

• Good low-frequency attenuation: Suitable for applications where low-frequency noise needs to be suppressed.

• Compact design: Saves space and allows for easy integration.

• Easy and fast chassis mounting: Facilitates quick installation.

• High saturation resistance and excellent thermal behavior of chokes: Ensures reliable performance under various operating conditions.

• Versatile terminal options: Fast-on terminals provide a convenient connection method.

• Available in medical (B type) and safety (A type) versions (optional): Offers flexibility for specific application requirements.
